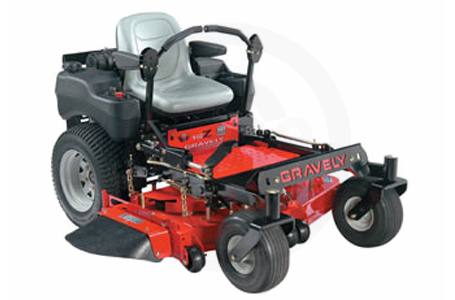

2008 Gravely 148M XDZ 48 ” Deck
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Want power? Want a lifetime machine? Whether you demand unmatched agility, reliability, operator comfort or professional results, the Gravely 148M XDZ zero-turn mower has you covered. Take advantage of the wide monster tires for a smooth, stable ride, a rugged engine to help tame the toughest lawns and the Gravely exclusive X-Factor™ Deck. Cutting becomes a joy ride with this zero-turn beast!

    Drive Train System
    • Hydro-Gear® 12 cc pumps with shock valves
    • Hydro-Gear® 15 cubic inch high torque wheel motors
    • 250 ft-lb Ogura® clutch
    • Canister-style air cleaner
    • 10.0 mph fwd/4.5 mph rev
    X-Factor® Deck Design
    • 7-guage fabricated and welded steel construction: 1/4" thick reinforcement plate at spindles
    • 5" deep airflow cut chamber
    • (3) Maintenance-free XL Spindles with cast iron housings
    • 1" to 5" height of cut with 9 settings (manual lift models)
    • Heavy-duty rubber discharge chute
    • Adjustable belt tensioning
    • Hardened steel blades
    Operator Ergonomics
    • High-back seat: armrests: full suspension adjustable seat
    • Double Z footboard for added comfort
    • Twin stick controls with dampeners to minimize fatigue
    • Flip-up handles for easy operator mounting and dismounting
    • Foot-operated deck lift with 1" to 5" height of cut with 9 settings
    • Large diameter fuel cap for quick re-fueling
    Frame Design
    • Fully welded tubular steel
    • 2.0" X 2.0" X .188" steel tubing
    Specifications
    • Warranty: 2-year
    • Engine Manufacturer: Kawasaki® Twin
    • Engine Power: 21 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 10 gal. (37.8 l)
    • Ground Speed (Forward/Rev): 10 mph/4.5 mph
    • Starter: Electric
    • Deck Material: 7 ga
    • Deck Construction: Welded
    • Number of spindles: 3
    • Blade Tip Speed (FPM): 18,000
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Belt
    • Deck Engagement: Ogura 250 ft-lb Electric Clutch
    • Deck Lift System: Manual
    • Cutting Width: 48 in.
    • Cutting Heights: 1 in.-5 in.
    • Cutting Positions: 9
    • Front Axle: Rigid
    • Caster Tires: Ribbed 15 x 6-6
    • Drive Tires: Turf 23 10-12
    • Safety: ANSI
    • Hood: No
    • Headlights: Optional
    • Seat: High Back w/Full Suspension
    • Hour Meter: Standard
    • Weight: 976 lbs.
    • Length: 72.5 in.
    • Width: 50 in. w/o Chute
    • Height: 47 in.

    Specifications

    Engine
    Engine Manufacturer Kawasaki® Twin
    Horse Power 21 hp
    Engine Type Twin
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 x 6-6; Drive Tires: Turf 23 10-12
    Fuel Capacity 10 gal. (37.8 l)
    Deck
    Deck Size 48 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2008
    Manufacturer Gravely
    Model 148M XDZ 48 ” Deck
    Style Riding
    Deck
    Deck Size 48 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki® Twin
    Horse Power 21 hp
    Engine Type Twin
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Caster Tires: Ribbed 15 x 6-6; Drive Tires: Turf 23 10-12
    Fuel Capacity 10 gal. (37.8 l)
