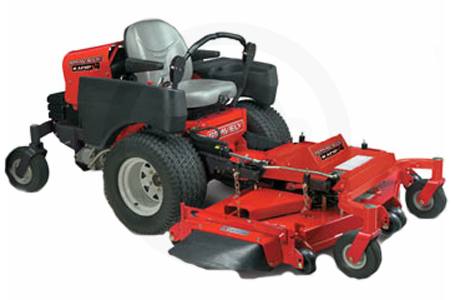

2008 Gravely Rapid XZ w/25 HP Kohler® Command Twin
Request a Quote Financing Calculator Request a Brochure Financing Form

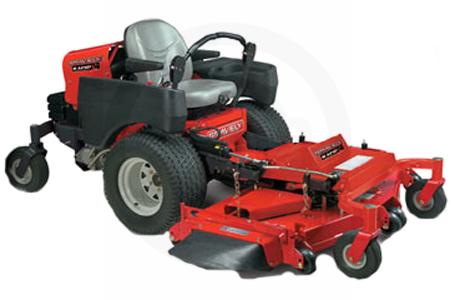

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Introducing the new Gravely® Rapid XZ™ Outfront Mower. Engineering innovation is what this machine is all about, featuring whopping 24" tires, powerful engine options, smooth hydraulic drive and comfortable cockpit with convenient footrest placement. The Outfront mower design allows easy access to hard-to-reach areas like under bushes and fences. Efficient zero-turn cutting saves you a ton of mowing time, and interchangeable cleanup and snow-throwing attachments make the Rapid XZ™ a machine for all seasons. Performance, innovation and convenience give Gravely the Outfront edge.

    Drive Train System
    • Infinitely variable ground drive powered by Hydro-Gear® 21cc pump/Hydro-Gear® 15ci motors
    • 200 ft-lb Warner ® clutch
    • Weasler® double U-joint drive shaft with extended life bearings
    • Weasler® cut spiral bevel gear box
    • 13.0 mph fwd/6.0 mph rev
    • 24-inch larger profile drive tires
    X-Factor® Deck Design
    • 7-guage fabricated and welded steel construction: 1/4" thick reinforcement plate at spindles
    • Maintenance-free XL Spindles® with cast iron housings
    • 1" to 5" height of cut with 9 settings
    • Extra-wide rubber discharge chute
    • Hardened steel blades
    Operator Ergonomics
    • High-back full-suspension seat with padded armrest
    • Hydraulic height of cut adjustment
    • Hydraulic deck lift
    • Two-position foot rest (XZ)
    • Dual trailing wheels
    • Large diameter fuel cap
    Frame Design
    • Structural steel tubing and fully welded fabricated steel
    Specifications
    • Warranty: 2 year
    • Engine Manufacturer: Kohler® Command Twin
    • Engine Power: 25 hp
    • Drive System: Hydrostatic
    • Fuel Tank: 7.5 gal. (28.4 l)
    • Ground Speed (Forward/Rev): 13 mph/6 mph
    • Starter: Electric
    • Deck Material: 7 ga
    • Deck Construction: Welded
    • Number of spindles: 3
    • Blade Tip Speed (FPM): 18,000
    • Spindle Material: Ductile Cast Iron
    • Spindle Shaft: 1 in. Steel
    • Spindle Bearings: Sealed Ball Bearing
    • Deck Drive: Shaft
    • Deck Engagement: Warner® 200 ft-lb Electric Clutch
    • Deck Lift System: Hydraulic
    • Cutting Width: 72 in.
    • Cutting Heights: 1 in.-5 in.
    • Cutting Positions: Infinite
    • Front Axle: 24 x 12-12 Turf
    • Front Wheels: 9 x 3.5-4
    • Rear Wheels: 5.25 x 13-4
    • Safety: ANSI
    • Hood: Yes
    • Headlights: No
    • Seat: High Back w/Full Suspension
    • Hour Meter: Standard
    • Weight: 1650 lbs.
    • Length: 75.5 in. w/o Deck
    • Width: 48 in. w/o Deck
    • Height: 45.5 in.

    Specifications

    Engine
    Engine Manufacturer Kohler® Command Twin
    Horse Power 25 hp
    Engine Type Twin
    General
    Transmission Hydrostatic
    Wheel Size Front: 9 x 3.5-4; Rear: 5.25 x 13-4
    Fuel Capacity 7.5 gal. (28.4 l)
    Deck
    Deck Size 72 in.
    Discharge Type Side

    Compare Models

    		 Print








    Year 2008
    Manufacturer Gravely
    Model Rapid XZ w/25 HP Kohler® Command Twin
    Style Riding
    Deck
    Deck Size 72 in.
    Discharge Type Side
    Engine
    Engine Manufacturer Kohler® Command Twin
    Horse Power 25 hp
    Engine Type Twin
    Displacement
    General
    Transmission Hydrostatic
    Wheel Size Front: 9 x 3.5-4; Rear: 5.25 x 13-4
    Fuel Capacity 7.5 gal. (28.4 l)
